WEIDMULLER 1597390000
Pluggable Terminal Block, 3.5 mm, 5 Ways, 22AWG to 14AWG, 1.5 mm², Screw, 10 A
- Manufacturer:
- WEIDMULLER WEIDMULLER
- Manufacturer Part No:
- 1597390000
- Order Code:
- 1131804
- Also Known As:
- BL 3.50/05/180 SN OR BX
- Technical Datasheet:
- 1597390000 Datasheet
- ECAD / MCAD
-
Product Overview

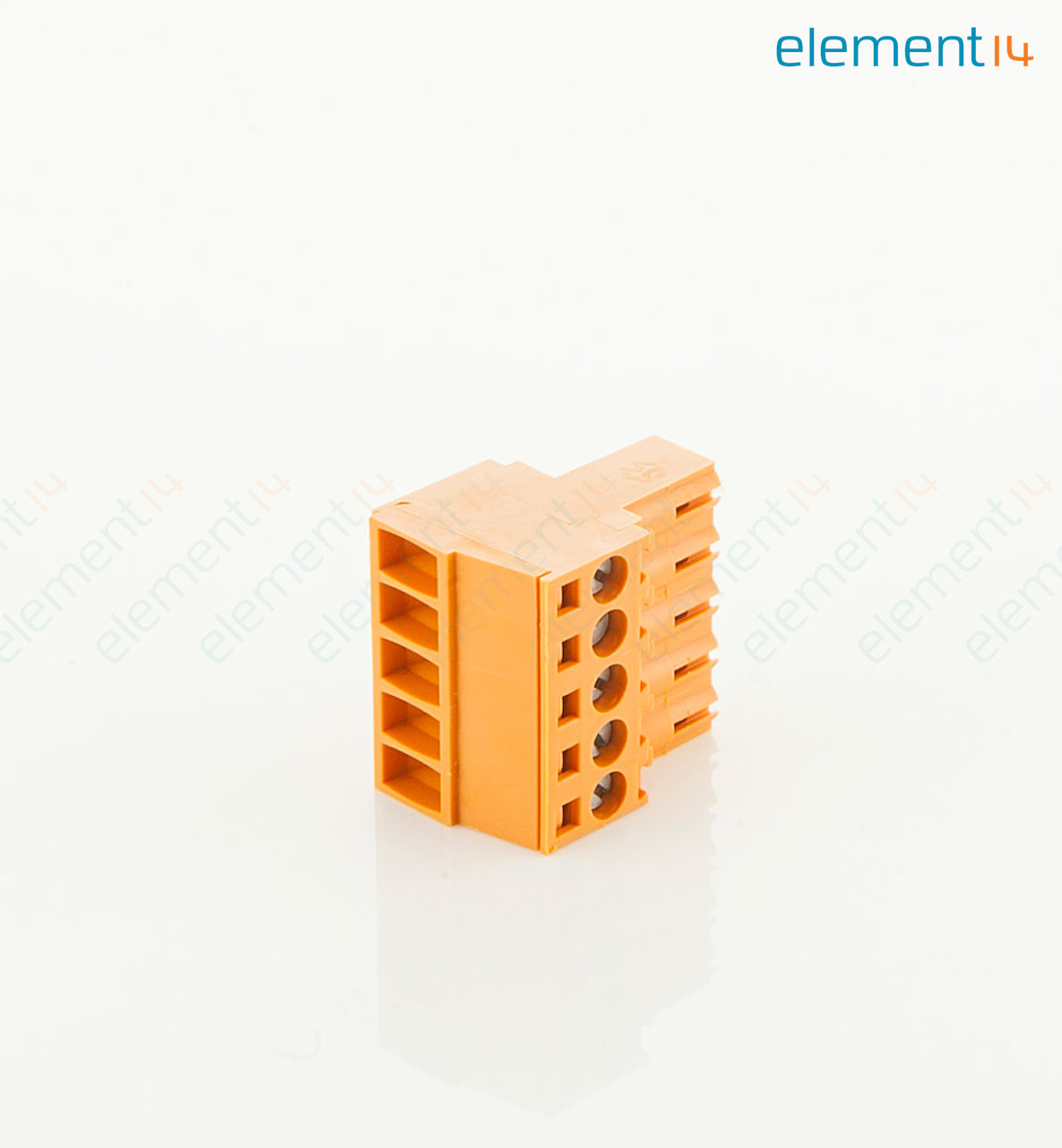

The BL 3.5/5 is a 5-position PCB pluggable Terminal Block with PBT insulator, orange colour and RAL 2000 colour chart, tinned Cu-leg contact and 4 to 8µm Sn hot-dip tinned layer structure of plug contact. Clamping yoke connection, safe from finger touch, 3.5mm pitch spacing, screw wire connection method, M2 clamping screw, 1.5mm² conductor cross-section and 28 to 14AWG wire connection size.
- UL94V-0 Flammability rating
- 2.5kV Rated surge voltage
- IP20 Protection rating
- 0.2 to 0.25Nm Torque
Applications
Industrial
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 3.5mm
- :
- 5Ways
- :
- 22AWG to 14AWG
- :
- 1.5mm²
- :
- Screw
- :
- 10A
- :
- 300V
- :
- -
Technical Documents (2)
Also Known As
BL 3.50/05/180 SN OR BX
1,224 total stock globally Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
102 more will be available on 8/01/24
102 more will be available on 22/02/24
Extra stock is available upon order to the Supplier Lead Time which is approximately 26/02/24
1,224 UK stock available for 5-8 business days delivery
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
