HBA100MFZRE

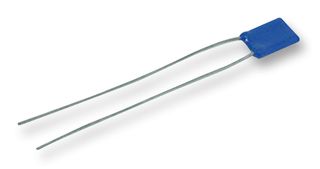

Through Hole Resistor, 100 Mohm, HB Series, 800 mW, ± 1%, Radial Leaded, 1 kV
Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - CGS
Manufacturer Part NoHBA100MFZRECopy
Manufacturer Standard Lead Time20 weeks
Order Code1502902
Product RangeHB Series
Also Known As1625960-1, HBA RE 100M 1% 100PPM
Your Part Number
3,122 total stock globally
Need more?
3,122 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $9.420 ($10.362) |
| 50+ | $6.760 ($7.436) |
| 100+ | $6.550 ($7.205) |
| 250+ | $6.330 ($6.963) |
| 500+ | $6.090 ($6.699) |
| 1000+ | $5.850 ($6.435) |
Price for:Each
Minimum: 1
Multiple: 1
$9.42 ($10.36 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - CGS
Manufacturer Part NoHBA100MFZRECopy
Manufacturer Standard Lead Time20 weeks
Order Code1502902
Product RangeHB Series
Also Known As1625960-1, HBA RE 100M 1% 100PPM
Technical Datasheet
Resistance100Mohm
Product RangeHB Series
Power Rating800mW
Resistance Tolerance± 1%
Resistor Case / PackageRadial Leaded
Voltage Rating1kV
Resistor TechnologyThick Film
Temperature Coefficient± 100ppm/°C
Resistor TypeHigh Voltage
Product Diameter2.6mm
Product Length8mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
SVHCNo SVHC (04-Feb-2026)
Product Overview
The HBA100MFZRE is a 100MΩ 800mW 2-termination through-hole mounting Fixed Resistor with thick film element and tinned copper leads termination. The HB is a tough epoxy coated high voltage resistor, with radial leads and made from quality materials for optimum reliability and stability. The high value fixed resistor is suitable for general purpose use.
- High ratio of size to power
- Established product with proven reliability
- Low inductance - For the fastest switching speeds
- -55 to 125°C Operating temperature range
Technical Specifications
Resistance
100Mohm
Power Rating
800mW
Resistor Case / Package
Radial Leaded
Resistor Technology
Thick Film
Resistor Type
High Voltage
Product Length
8mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
HB Series
Resistance Tolerance
± 1%
Voltage Rating
1kV
Temperature Coefficient
± 100ppm/°C
Product Diameter
2.6mm
Product Width
-
Operating Temperature Max
125°C
SVHC
No SVHC (04-Feb-2026)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000363
