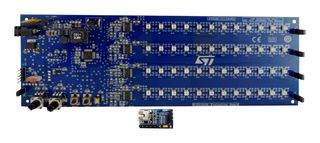

STMICROELECTRONICS STEVAL-LLL002V1

EVAL KIT, REAR LIGHT W/PATTERN ANIMATION

STMICROELECTRONICS STEVAL-LLL002V1
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
STEVAL-LLL002V1
Order Code:
3228661
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
STEVAL-LLL002V1   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (TUK SGACK902S Keystone Coupler)

See all from this product range

Product Overview

Evaluation kit consists of the STEVAL-LLL002M1 main board and the STEVAL-LLL002D1 USB-UART bridge. It has been designed to test and evaluate ALED1262ZT performance. The STEVAL-LLL002M1 is a LED array driver system evaluation board with local dimming and diagnostics for automotive applications. It is based on the ALED1262ZT 12-channel LED driver controlled through the STM8AF6266 microcontroller I²C interface. A 48 red LED matrix is driven by four ALED1262ZT LED drivers. The on-board A7986A DC-DC converter, accepting standard adapter input voltages with reverse polarity protection, provides the voltages and power for the board operation. The evaluation kit jumpers simulate LED open circuit faults and the 4-pin SWIM connector is used to debug and develop the STM8AF6266 microcontroller firmware. The evaluation kit can operate in bus driven mode (BDM), standalone mode (SAM) and GUI mode.
  • Various pre-configured and programmable patterns on the 12 x 4 red LED matrix
  • 7bit PWM local dimming control with non-linear steps
  • Speed control, push buttons to switch modes
  • Safety standalone mode function and OTP pre-programmed mode for custom configuration
  • Fast I²C interface with selectable extended hamming encoding
  • Open error simulation and real-time detection
  • 12 to 24VDC power supply with reverse polarity protection
  • GUI for advanced driver configuration
  • USB-UART bridge (STEVAL-LLL002D1) for PC connection

Contents

STEVAL-LLL002M1 main board and the STEVAL-LLL002D1 USB-UART bridge.

Footnotes

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Constant Current

:
48Outputs

:
-

:
-

:
12VDC

:
24VDC

:
ALED1262ZT

:
PWM

:
Eval kit ALED1262ZT, STEVAL-LLL002M1 Main Board & STEVAL-LLL002D1 USB-UART Bridge

:
