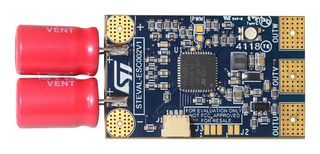

Evaluation Board, STSPIN32F0A Electronic Speed Controller (ESC), Motor Drive Reference Design


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
STEVAL-ESC002V1   Datasheet
Supply Frame Models Link
See all Technical Docs

Product Overview

Very compact and ready to use electronic speed controller (ESC) reference design. The board can easily fit any small and light drone for racing or surveying purposes and is also highly suitable for any three-phase BLDC application requiring a small form factor, minimal BoM and high speed rotation performance. Together with the companion firmware package (STSW-ESC002V1), it represents a solution for sensorless voltage mode six-step driving. The heart of the board is the STSPIN32F0A advanced 3-phase brushless motor controller that embeds an STM32 Cortex®-M0® microcontroller, voltage regulators, signal conditioning circuitry and gate drivers in a small 7x7 mm² QFN package. The power stage is based on the 2.8mohm low resistance, high speed STL140N6F7 MOSFETs, designed with STripFET™ F7 technology and able to deliver up to 20A of continuous current.
  • Designed for sensorless six-step driving
  • 2S to 6S LiPo battery pack
  • Output current up to 20ARMS
  • Pre-configured firmware package (STSW-ESC002V1)
  • BEMF sensing through OpAmps embedded in STSPIN32F0A
  • Embedded bootloader through UART interface
  • Overcurrent protection, battery voltage sensing
  • Compliant with Directive 2006/66/EC


Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×



Power Management - Motor Control

Three Phase DC Brushless Motor Control




Reference Design Board STSPIN32F0A/STL140N6F7


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

25 total stock globally Need more?

25 UK stock available for 5-8 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

$52.00 ( $57.20  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Multiple: 1 Minimum: 1
  • 1+
Quantity Price (Incl GST) Your Price (Incl GST)
1+ $52.00 ($57.20)
