RC24M9K

Circular Connector Contact, Machined, Trim Trio Series, Socket, Crimp, 24 AWG, 26 AWG

SOURIAU-SUNBANK BY EATON RC24M9K
SOURIAU-SUNBANK BY EATON RC24M9K

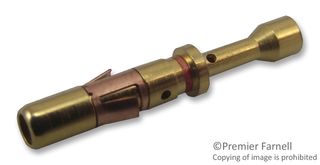

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
RC24M9K
Order Code:
3652075
Product Range
Trim Trio Series
Technical Datasheet:
RC24M9K   Datasheet
See all Technical Docs

Product Range Selector (Trim Trio Series)

See all from this product range

Product Overview

The RC24M9K is a solid machined contact for TRIM TRIO connectors, socket type, 0.13 to 0.20mm² wire. The contact is precision solid machined crimp snap-in sockets for heavy -duty top performance requirements. Springs are made of spring-tempered, heat-treated, beryllium copper. The socket inner spring supplies high contact pressure to ensure low-resistance contact between pin and socket. The socket contact features closed entry to prevent probe damage. Crimp barrels have insulation grips for vibration support and are provided with a cable stop and inspection hole.
  • Closed entry design on RC socket contact to prevent probe damage
  • 13A Current rating
  • <=3mR Contact resistance
  • 110N Minimum contact retention in body

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Trim Trio Series

:
Socket

:
Crimp

:
24AWG

:
26AWG

:
TRIM TRIO Connectors

:
Gold Plated Contacts

:
Copper

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

9,425 total stock globally Need more?

8,425 available for 4 - 5 business days delivery
1,000 available for 5 - 6 business days delivery

$1.27 ( $1.40  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 25 Minimum: 25
Quantity Price (Incl GST) Your Price


25+ $1.27 ($1.40)
