SSF212XPM12
FLOAT SW, LIQUID, 5BAR, SPST-NO/NC, 0.5A

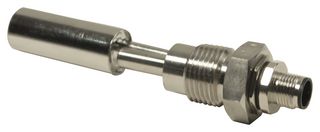

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSENSATA / CYNERGY3
Manufacturer Part NoSSF212XPM12
Order Code2316594
Your Part Number
Technical Datasheet
4 total stock globally
Need more?
4 Delivery in 10-14 Business Days(US stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $322.760 ($355.036) |
| 5+ | $315.070 ($346.577) |
| 10+ | $307.380 ($338.118) |
| 25+ | $300.410 ($330.451) |
| 50+ | $293.430 ($322.773) |
| 100+ | $287.570 ($316.327) |
Price for:Each
Minimum: 1
Multiple: 1
$322.76 ($355.04 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSENSATA / CYNERGY3
Manufacturer Part NoSSF212XPM12
Order Code2316594
Technical Datasheet
Level Switch TypeFloat Switch
Sensor Body MaterialStainless Steel
Media TypeLiquid
Process Connection Type1/2" NPT Male
Operating Pressure Max5bar
Housing MaterialStainless Steel
Switch OutputSPST-NO/NC
Electrical Connection4 Pin M12 Connector
Supply Voltage Min-
Supply Voltage Max-
Operating Temperature Min-
Operating Temperature Max120°C
Product Range-
Technical Specifications
Level Switch Type
Float Switch
Media Type
Liquid
Operating Pressure Max
5bar
Switch Output
SPST-NO/NC
Supply Voltage Min
-
Operating Temperature Min
-
Product Range
-
Sensor Body Material
Stainless Steel
Process Connection Type
1/2" NPT Male
Housing Material
Stainless Steel
Electrical Connection
4 Pin M12 Connector
Supply Voltage Max
-
Operating Temperature Max
120°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:90261029
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.107957
