Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ROTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | RE901Copy |
| Order Code | 1172113 |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | ROTH ELEKTRONIK |
|---|---|
| Manufacturer Part No | RE901Copy |
| Order Code | 1172113 |
| Technical Datasheet | |
| Convert From | TO252, SOT223, SOT89, SOT23, SOT23-8, SC75 |
| Convert To | - |
| Pitch Spacing | 2.54mm |
| Row Pitch | - |
| Product Range | - |
Product Overview

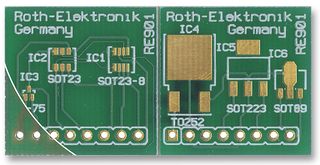

RE901 is a multiadapter circuit board with six micro-miniature semiconductor circuits. The PCB can be equipped with twenty different types of semiconductors.
- Epoxy fibre-glass FR4 1.50mm, single-sided 35µm Cu
- Surface chemical Ni/Au with solder stop mask, component print
- 8-pole pin terminal connection spacing 2.54mm
- Hole diameter is 1.00mm
- Prescratched rated break point for the separation of individual modules from the board
- Size is 22.86mm x 46.72mm
Notes
Gerber data for manufacture of the soldering paste imprint will be provided free of charge on request.
Technical Specifications
| Convert From | TO252, SOT223, SOT89, SOT23, SOT23-8, SC75 |
|---|---|
| Pitch Spacing | 2.54mm |
| Product Range | - |
| Convert To | - |
|---|---|
| Row Pitch | - |
Technical Docs (1)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85340019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .003 |
