ISL78171EVAL1Z
Evaluation Board, ISL78171IRZ, Boost, DC, PWM, 4.5 V to 26.5 V Input, 32V/20mA Out, LED Driver
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | ISL78171EVAL1ZCopy |
| Manufacturer Standard Lead Time | 35 weeks |
| Order Code | 4105468 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $321.640 ($353.804) |
Product Information
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | ISL78171EVAL1ZCopy |
| Manufacturer Standard Lead Time | 35 weeks |
| Order Code | 4105468 |
| Technical Datasheet | |
| Device Topology | Boost |
| No. of Outputs | 60Outputs |
| Output Current | 20mA |
| Output Voltage | 32V |
| Input Voltage Min | 4.5V |
| Input Voltage Max | 26.5V |
| Core Chip | ISL78171IRZ |
| Dimming Control Type | DC, PWM |
| Kit Contents | Evaluation Board ISL78171IRZ |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

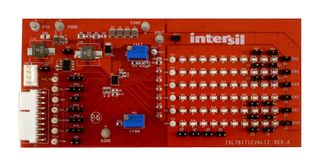

ISL78171EVAL1Z evaluation board is used to evaluate the ISL78171 6-channel, 50mA automotive LED driver with ultra-high dimming ratio and phase shift control. This board is populated with 60 LEDs in 6P10S (six parallel strings, each string consisting of 10 LEDs in series) configuration to simplify evaluation and testing. The device can function with or without an I²C controller. If it is required to use I²C control for the ISL78171EVAL1Z board, use a generic I²C interface adapter (not supplied with the evaluation board kit) for the purpose of communication. Application includes infotainment display LED backlighting, LCD monitor LED backlighting, field sequential RGB LED backlighting.
- Input voltage range from 4.5V to 26.5V
- Output voltage is 32V typical and 40V maximum
- LED string current is 20mA typical
- Board dimension is 140.33mm x 64.77mm
- Integrated 40V boost converter, 6 precision current sinks, up to 50mA each
- Current matching is ±0.7% typical
- Dimming modes are DC, internal PWM, direct PWM, DC + Int/Dir PWM
- Phase shift control for internal PWM dimming
- 600kHz/800kHz/1.2MHz I2C selectable switching frequency
- Dynamic headroom control
Technical Specifications
| Device Topology | Boost |
|---|---|
| Output Current | 20mA |
| Input Voltage Min | 4.5V |
| Core Chip | ISL78171IRZ |
| Kit Contents | Evaluation Board ISL78171IRZ |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Outputs | 60Outputs |
|---|---|
| Output Voltage | 32V |
| Input Voltage Max | 26.5V |
| Dimming Control Type | DC, PWM |
| Product Range | - |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0035 |
