SC0370

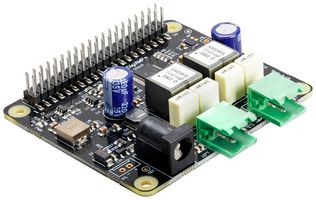

Raspberry Pi DigiAMP+ Board, TAS5756M, Audio HAT, 0 °C to 50 °C 40-Pin GPIO Header
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RASPBERRY-PI |
|---|---|
| Manufacturer Part No | SC0370Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4527519 |
| Your Part Number | |
| Technical Datasheet |
366 total stock globally
1 more incoming. You can reserve stock now
366 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $43.120 ($47.432) |
Price for:Each
Minimum: 1
Multiple: 1
$43.12 ($47.43 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RASPBERRY-PI |
|---|---|
| Manufacturer Part No | SC0370Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4527519 |
| Technical Datasheet | |
| Add-On-Card & Module Type | Raspberry Pi Audio DIGIAMP+ HAT |
| For Use With | Raspberry Pi Computer w/40-Pin GPIO Header |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
SC0370 is a Raspberry Pi DigiAMP+ high-performance audio HAT and is compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments TAS5756M 24bit 192KHz stereo amplifier, it delivers a direct connection to passive stereo speakers at up to 35 Watts per channel with variable output. It is powered by an external 12 to 24V DC power supply, and connects directly to Raspberry Pi’s GPIO header, providing power to the Raspberry Pi itself. DigiAMP+ is ideal for use in Raspberry Pi-based hi-fi systems.
- 58mm x 65mm form factor
- Power LED
- Alternative power input for hard-wired installations via P5
- 40-pin pass-through GPIO header
- HAT EEPROM write-enabled
- 2 x 35W passive stereo speakers with variable output via panel-mounted screw terminals
- Operating temperature range from 0°C to 50°C
Technical Specifications
| Add-On-Card & Module Type | Raspberry Pi Audio DIGIAMP+ HAT |
|---|---|
| Product Range | - |
| For Use With | Raspberry Pi Computer w/40-Pin GPIO Header |
|---|---|
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .058 |
