SC0369

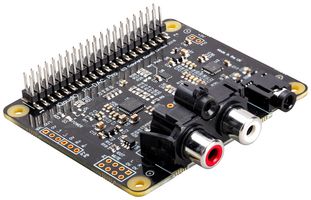

Raspberry Pi IQaudio DAC Pro Board, PCM5242, Highest-Fidelity, Audio HAT 40-Pin GPIO Header
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RASPBERRY-PI |
|---|---|
| Manufacturer Part No | SC0369Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4527518 |
| Your Part Number | |
| Technical Datasheet |
49 total stock globally
Need more?
49 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $44.990 ($49.489) |
Price for:Each
Minimum: 1
Multiple: 1
$44.99 ($49.49 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RASPBERRY-PI |
|---|---|
| Manufacturer Part No | SC0369Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4527518 |
| Technical Datasheet | |
| Add-On-Card & Module Type | Raspberry Pi Highest-Fidelity Audio DAC PRO HAT |
| For Use With | Raspberry Pi Computer w/40-Pin GPIO Header |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
SC0369 is a Raspberry Pi DAC Pro highest-fidelity audio HAT and is compatible with any Raspberry Pi computer. With the Texas Instruments PCM5242, the 24bit 192KHz DAC Pro provides an outstanding signal-to-noise ratio (SNR) and supports balanced/differential output in parallel to phono/RCA line-level output. It also includes a dedicated headphone amplifier.
- 58mm x 65mm form factor
- Supplied by Raspberry Pi through the 40-pin GPIO header (no external power source required)
- Power LED
- Analogue out (0–2V RMS via P7)
- Dedicated headphone amplifier, output via 3.5mm
- Panel-mounted barrel socket
- Panel-mounted stereo phono (RCA) socket output
- HAT EEPROM write-enabled
- Operating temperature range from 0°C to 50°C
Technical Specifications
| Add-On-Card & Module Type | Raspberry Pi Highest-Fidelity Audio DAC PRO HAT |
|---|---|
| Product Range | - |
| For Use With | Raspberry Pi Computer w/40-Pin GPIO Header |
|---|---|
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .039 |
