SC0368

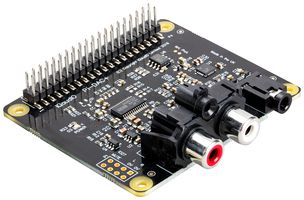

Raspberry Pi DAC+ Board, PCM5122, TPA6133A, Audio HAT, 0 °C to 50 °C 40-Pin GPIO Header
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | RASPBERRY-PI |
|---|---|
| Manufacturer Part No | SC0368Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4527517 |
| Your Part Number | |
| Technical Datasheet |
76 total stock globally
Need more?
76 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $29.010 ($31.911) |
Price for:Each
Minimum: 1
Multiple: 1
$29.01 ($31.91 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | RASPBERRY-PI |
|---|---|
| Manufacturer Part No | SC0368Copy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 4527517 |
| Technical Datasheet | |
| Add-On-Card & Module Type | Raspberry Pi Audio DAC+ HAT |
| For Use With | Raspberry Pi Computer w/40-Pin GPIO Header |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
SC0368 is a Raspberry Pi DAC+ high-performance audio HAT compatible with any Raspberry Pi computer that has a 40-pin GPIO header. With the Texas Instruments PCM5122, it delivers stereo analogue audio to a pair of phono (RCA) connectors. It does not require external power, and connects directly to Raspberry Pi’s GPIO header with no need for soldering or cables.
- 58mm x 65mm form factor
- Power LED
- Analogue audio out (0-2VRMS): panel-mount stereo phono(RCA) socket w/ MUTE signal(headphone detect)
- Dedicated headphone amplifier, output via 3.5mm panel mounted barrel socket
- HAT EEPROM write-enabled
- Operating temperature range from 0°C to 50°C
Technical Specifications
| Add-On-Card & Module Type | Raspberry Pi Audio DAC+ HAT |
|---|---|
| Product Range | - |
| For Use With | Raspberry Pi Computer w/40-Pin GPIO Header |
|---|---|
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .058 |
