AS02008MO-R

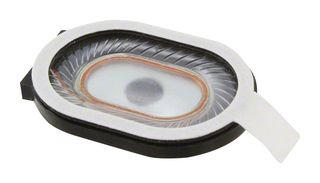

Speaker, 400 Hz to 20 kHz, 8 ohm, 1 W, 94 dB, Oval, SMD
Image is for illustrative purposes only. Please refer to product description.
ManufacturerPUI AUDIO
Manufacturer Part NoAS02008MO-RCopy
Manufacturer Standard Lead Time20 weeks
Order Code4411350
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 20 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $8.620 ($9.482) |
| 10+ | $6.650 ($7.315) |
| 50+ | $5.590 ($6.149) |
| 100+ | $5.200 ($5.720) |
| 200+ | $4.960 ($5.456) |
| 400+ | $4.720 ($5.192) |
Price for:Each
Minimum: 1
Multiple: 1
$8.62 ($9.48 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerPUI AUDIO
Manufacturer Part NoAS02008MO-RCopy
Manufacturer Standard Lead Time20 weeks
Order Code4411350
Technical Datasheet
Driver TypeGeneral Purpose
Impedance8ohm
External Width - Metric14mm
Power Rating Nom500mW
Resonant Frequency750Hz
Sound Pressure Level (SPL)94dB
Speaker ShapeOval
Product Dimensions20mm x 14mm x 4mm
External Width - Imperial0.55"
Frequency Response Min400Hz
Frequency Range400Hz to 20kHz
Frequency Response Max20kHz
Temperature Grade-
IP RatingIP65
Product Range-
Speaker MountingSMD
Power Rating Max1W
External Length - Metric20mm
External Depth - Metric3.5mm
External Length - Imperial0.78"
External Depth - Imperial0.14"
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Driver Type
General Purpose
External Width - Metric
14mm
Resonant Frequency
750Hz
Speaker Shape
Oval
External Width - Imperial
0.55"
Frequency Range
400Hz to 20kHz
Temperature Grade
-
Product Range
-
Power Rating Max
1W
External Depth - Metric
3.5mm
External Depth - Imperial
0.14"
Impedance
8ohm
Power Rating Nom
500mW
Sound Pressure Level (SPL)
94dB
Product Dimensions
20mm x 14mm x 4mm
Frequency Response Min
400Hz
Frequency Response Max
20kHz
IP Rating
IP65
Speaker Mounting
SMD
External Length - Metric
20mm
External Length - Imperial
0.78"
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85182900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00132
