6235

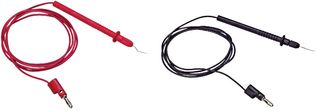

Test Lead Set, Test Tip Probe to 4mm Banana Plug, 1.2 kV, 5 A, 1.219 m, 2 Leads

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
POMONA POMONA
Manufacturer Part No:
6235
Order Code:
2526748
Product Range
Model 5144 Series
Technical Datasheet:
6235   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Test Tip Probe

:
4mm Stackable Banana Plug

:
1.2kV

:
5A

:
Black, Red

:
1.219m

:
48"

:
2

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The 6235 is a Test Lead Kit with test probe and 4mm stack-up banana plug. The Test Probe with stainless steel removable micro tip, brass removable chuck, nickel-plated chuck, nylon chuck nut and probe body insulation, 20AWG stranding PVC insulated 2.21-inch outer diameter wire. The stacking banana plug with nickel-plated beryllium copper spring, brass plug body, polypropylene molded insulation for plug body and wire, insulated. The micro tip is specially designed to probe SMD contacts. It features a stainless steel needle tip that is flexible to help prevent damage to the SMD leads. The micro tip is curved to aid in probing of hard to reach areas.
  • Black and red insulator
  • 1200Vrms Maximum voltage
  • 55°C Maximum operating temperature

Applications

Industrial, Test & Measurement

Contents

2-piece of each of 48-inch black and red test lead.

3 total stock globally Need more?

3 available for 4 - 5 business days delivery

$46.08 ( $50.69  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $46.08 ($50.69)
