MP002733

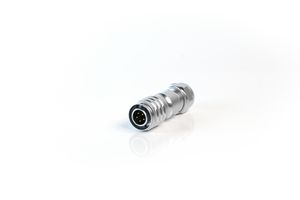

Circular Connector, MP-M12, Metal Plug, Male Contacts, 5 Way, Cable Mount, Push-Pull, Solder, IP67
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP002733Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3369974 |
| Product Range | MP M12 Push-Pull Connectors |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $18.910 ($20.801) |
| 5+ | $17.090 ($18.799) |
Product Information
| Manufacturer | MULTICOMP PRO |
|---|---|
| Manufacturer Part No | MP002733Copy |
| Manufacturer Standard Lead Time | 17 weeks |
| Order Code | 3369974 |
| Product Range | MP M12 Push-Pull Connectors |
| Technical Datasheet | |
| Connector Type | M-Series Circular Connector |
| Product Range | MP M12 Push-Pull Connectors |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 5Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | Push-Pull |
| Connector Body Material | Brass Body |
| Connector Body Plating | Chrome |
| Contact Material | Brass |
| Contact Plating | Gold |
| IP Rating | IP67 |
| SVHC | To Be Advised |
Product Overview
The MP M12 push-pull connectors are a range of chrome plated brass connectors that are both solid enough to be used within tough environments whilst also being aesthetically pleasing. Available in panel mount, cable mount and in-line cable mount options providing a choice of a cable to cable connection or cable to panel-mount connection. The push-pull style coupling allows for easy connection/disconnection and the IP67 weather sealing makes these ideal for both indoor and outdoor applications.
- Fits 12mm cut-out
- Solder termination
- IP67 rated
- Push-pull mating
- 2, 4, 5, and 7 pole versions available
Applications
Automation & Process Control, Medical, Security, Test & Measurement, Industrial Automation
Technical Specifications
| Connector Type | M-Series Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Brass Body |
| Contact Material | Brass |
| IP Rating | IP67 |
| Product Range | MP M12 Push-Pull Connectors |
|---|---|
| No. of Contacts | 5Contacts |
| Coupling Style | Push-Pull |
| Connector Body Plating | Chrome |
| Contact Plating | Gold |
| SVHC | To Be Advised |
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85369010 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .025 |
