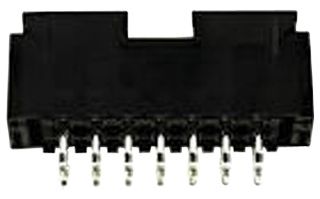

43879-0027
Pin Header, Board-to-Board, Wire-to-Board, 4.2 mm, 2 Rows, 14 Contacts, Press Fit
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $19.310 ($21.241) |
| 10+ | $16.940 ($18.634) |
| 25+ | $16.610 ($18.271) |
| 100+ | $14.450 ($15.895) |
| 250+ | $13.420 ($14.762) |
| 500+ | $13.150 ($14.465) |
Product Information
Product Overview
The Mini-Fit BMI 43879 series Mini-Fit® Blind Mate Interface (BMI) connector support up to 13A for high-current and high-density applications in wire-to-wire, wire-to-board and board-to-board applications. Mini-Fit® BMI connector allow misalignment and provide float of up to 2.54mm between mating surfaces for easy blind-mate connections. The header feature flanges that help to gather the mating receptacle.
Applications
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical
Technical Specifications
Board-to-Board, Wire-to-Board
2Rows
Press Fit
Shrouded
Tin Plated Contacts
Nylon (Polyamide), Glass Filled Body
8A
4.2mm
14Contacts
Mini-Fit BMI 43879 Series
Phosphor Bronze
PCB Header
Straight
No SVHC (04-Feb-2026)
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
