MC42005A6W-BNMLW-V2

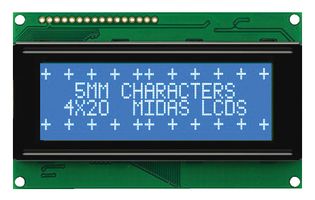

Alphanumeric LCD, 20 x 4, White on Blue, 5V, Parallel, English, Japanese, Transmissive
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC42005A6W-BNMLW-V2Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2675679 |
| Your Part Number | |
| Technical Datasheet |
241 total stock globally
Need more?
241 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $32.310 ($35.541) |
| 5+ | $29.070 ($31.977) |
| 10+ | $24.930 ($27.423) |
| 50+ | $23.260 ($25.586) |
| 100+ | $22.780 ($25.058) |
| 250+ | $22.300 ($24.530) |
Price for:Each
Minimum: 1
Multiple: 1
$32.31 ($35.54 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MIDAS DISPLAYS |
|---|---|
| Manufacturer Part No | MC42005A6W-BNMLW-V2Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2675679 |
| Technical Datasheet | |
| Character Count x Line | 20 x 4 |
| Display Appearance | White on Blue |
| Logic Voltage | 5V |
| Interface Type | Parallel |
| Font Set | English, Japanese |
| Display Mode | Transmissive |
| Character Size | 4.75mm |
| LCD Display Type | BSTN |
| Module Size | 98mm x 60mm |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Display Construction | COB |
| Backlighting Colour | White |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The MC42005A6W-BNMLW-V2 from Midas is a chip on board LCD alphanumeric module. The overall size of module is 98mm x 60mm x 14mm (W x H x D), character size is 2.95mm x 4.75mm (W x H), character pitch is 0.6mm x 0.6mm (W x H).
- Typical input voltage is 5V
- Supply current is 1.5mA at Vdd = 3V
- 20 character number per line & 4 character line
- Character height is 5mm
- Blue transmissive STN
- LED white backlight
- 6 "o" clock viewing direction
- SPLC780D controller
- Operating temperature range from -20°C to 70°C
- Display duty 1/16, Driving bias 1/5
- White LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 16 way through hole SIL (top right) connection, 2.54mm pitch
