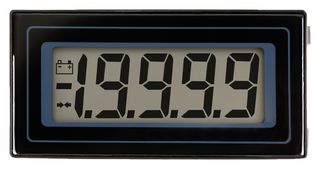

DPM 160

Digital Panel Meter, Compact LCD, FSR, 4-1/2 Digits, DC Voltage, 0mV to 200mV, 0V to 2V

DPM 160 - Digital Panel Meter, Compact LCD, FSR, 4-1/2 Digits, DC Voltage, 0mV to 200mV, 0V to 2V
DPM 160 - Digital Panel Meter, Compact LCD, FSR, 4-1/2 Digits, DC Voltage, 0mV to 200mV, 0V to 2V
DPM 160 - Digital Panel Meter, Compact LCD, FSR, 4-1/2 Digits, DC Voltage, 0mV to 200mV, 0V to 2V

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
LASCAR LASCAR
Manufacturer Part No:
DPM 160
Order Code:
9932593
Technical Datasheet:
DPM 160   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
4-1/2

:
DC Voltage

:
0mV to 200mV, 0V to 2V

:
12.5mm

:
27mm

:
57mm

:
6V

:
14V

:
0°C

:
50°C

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

The DPM 160 is a 4-1/2-inch Digital Panel Meter with compact LCD display technology and DC voltage function. A DPM offering levels of performance, low current consumption and compact size never previously available. Automatic low battery indication and 'continuity' flags are built into the display. Supplied complete with snap-in bezel, it will suits many applications calling, high accuracy measurements in portable instruments. Two resistors Ra and Rb may be fitted in order to alter the full scale reading (FSR) of the meter. The meter will need re-calibration. To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module pins must not exceed 60VDC. If voltages to the measuring inputs do exceed 60VDC, then fit scaling resistors externally to the module. The user must ensure that the incorporation of the DPM into the user equipment conforms to the relevant sections of BS EN 61010.
  • Programmable decimal points
  • Auto-zero
  • Auto-polarity
  • Digital hold
  • Auto ranging outputs
  • Low power consumption
  • Solder pad connections for selection of operation modes
  • Low battery and continuity symbol or message
  • Display hold facility
  • ±0.01% Maximum accuracy
  • 30ppm/°C Temperature stability

Applications

Industrial, Clock & Timing, Test & Measurement, Metering
