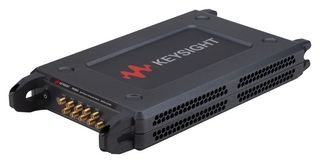

P9165A-AU

P9165A-AU is a 300kHz to 6.5GHz, 2X8 USB solid state switch matrix. It works seamlessly with Keysight’s P50xxA streamline series of VNA solution in providing a switch based multiport VNA solution in the form of compact USB controlled involving larger scale of multi-DUT or multiport measurement such as 5G massive MIMO antenna measurement. The switch matrix is designed to provide switch based multiport VNA solution and can also be used as a generic standalone switching solution. This USB solid state switch matrix is designed for indoor use and in an area with low condensation.

• Isolation: 88dB (2 to 6.5GHz) and return loss (CHx port, OFF): 2MHz to 6.5GHz: 12.7dB
• 25dBm maximum input power, 50µs typical switching speed, built-in temperature stability
• Fast switching speed with an ultra-long cycle life, reduces total cost of test
• Unmatched isolation minimizes cross talk in high density ATE systems
• Extend the number of test ports for multi-DUT or multiport devices measurement
• Portable and easily share the compact switch matrix between your location
• Achieve lower cost-per-port test without compromising performance and bench space
• Route RF and microwave signals in automated test applications
• Flexibility to build switch matrix as desired, hence a low-cost solution
• Operating temperature range from 0°C to +40°C
