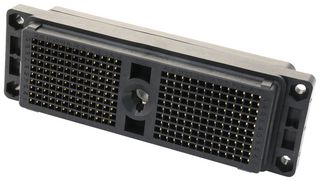

DL5-260RW6B

Connector, ZIF, DL Series, 260 Contacts, 2.54 mm, Receptacle, Wire Wrap, 10 Rows

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
DL5-260RW6B
Order Code:
2677957
Product Range
DL Series
Technical Datasheet:
DL5-260RW6B   Datasheet
See all Technical Docs

Product Overview

The DL5-260RW6B is a 260-position 10-row Card Edge Receptacle with gold-plated copper alloy square post contacts and a plastic body. It is suitable for through-hole mounting pattern.
  • 5A Maximum current rating
  • 1200VACrms Dielectric withstanding voltage
  • 15mR Maximum contact resistance
  • 5000MR Minimum insulation resistance
  • -55 to 105°C Operating temperature range

Applications

Medical, Test & Measurement, Commercial, Automation & Process Control, Computers & Computer Peripherals, Avionics, Robotics, Lighting, Communications & Networking, Automotive

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
DL Series

:
260Contacts

:
2.54mm

:
Receptacle

:
Wire Wrap

:
10Rows

:
2.54mm

:
Copper Alloy

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

2 total stock globally Need more?

2 available for 4 - 5 business days delivery

$417.33 ( $459.06  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $417.33 ($459.06)
