EVALIM69D130FLEXKITTOBO1
Evaluation Board, IM69D130, MEMS Microphone, Audio, 5 x Flex Board, Adapter Board
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALIM69D130FLEXKITTOBO1Copy |
| Manufacturer Standard Lead Time | 53 weeks |
| Order Code | 4134155 |
| Also Known As | SP002153022, EVAL_IM69D130_FLEXKIT |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $108.300 ($119.130) |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALIM69D130FLEXKITTOBO1Copy |
| Manufacturer Standard Lead Time | 53 weeks |
| Order Code | 4134155 |
| Also Known As | SP002153022, EVAL_IM69D130_FLEXKIT |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | IM69D130 |
| Kit Application Type | Audio |
| Application Sub Type | MEMS Microphone |
| Kit Contents | 5 x Flex Board IM69D130, Adapter Board |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

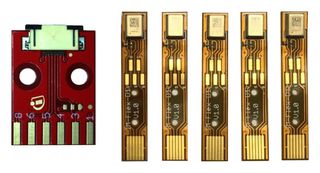

EVALIM69D130FLEXKITTOBO1 is a IM69D130 MEMS microphone flex evaluation kit allows for evaluation with minimal effort. Its small size and flexibility enables direct placement of the flex board into a prototype. The flex kit consists of five flex boards and one adapter board. The digital flex board is equipped with a digital PDM output microphone and a 0.1µF supply bypass capacitor. It can be connected to a 6-position ZIF connector with a 0.5 mm pin spacing, such as the Molex 0527450697, or wires can be soldered directly on the flex board. The analogue flex board is equipped only with the differential MEMS microphone. The adapter board has a 6-position ZIF and a 2.54 mm board-to-board connector. The adapter board provides the ability to configure the select pin of digital microphone to VDD or Ground.
- Flex board equipped with XENSIV IM69D130 MEMS microphone
- Quick and easy connection to evaluation system
- Flex dimension is 25 x 4.5mm, adapter dimension is 20 x 15mm
- Configurable select pin configuration for digital microphones
Contents
Five flex boards, One adapter board.
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Audio |
| Kit Contents | 5 x Flex Board IM69D130, Adapter Board |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Core Number | IM69D130 |
|---|---|
| Application Sub Type | MEMS Microphone |
| Product Range | - |
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .025 |
