EVALIM67D130FLEXKITTOBO1
Evaluation Kit, IM67D130A, MEMS Microphone, Audio
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALIM67D130FLEXKITTOBO1Copy |
| Order Code | 3955368 |
| Your Part Number | |
| Technical Datasheet |
Product Information
| Manufacturer | INFINEON |
|---|---|
| Manufacturer Part No | EVALIM67D130FLEXKITTOBO1Copy |
| Order Code | 3955368 |
| Technical Datasheet | |
| Silicon Manufacturer | Infineon |
| Silicon Core Number | IM67D130A |
| Kit Application Type | Audio |
| Application Sub Type | MEMS Microphone |
| Kit Contents | 5 x Flex Board IM67D130A, 1 x Adapter Board |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2018) |
Product Overview

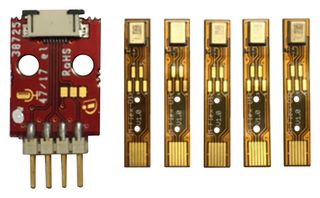

EVALIM67D130FLEXKITTOBO1 is a XENSIV™ MEMS microphone flex evaluation kit that allows for evaluation with minimal effort. Its small size and flexibility enables direct placement of the flex board into a prototype. Each flex kit consists of five flex boards and one adapter board. The digital flex board is equipped with a digital PDM output microphone and a 0.1µF supply bypass capacitor. It can be connected to a 6-position ZIF connector with a 0.5mm pin spacing, such as the Molex 0527450697, or wires can be soldered directly on the flex board. The analogue flex board is equipped only with the differential MEMS microphone. The adapter board has a 6-position ZIF and a 2.54mm board-to-board connector. The adapter board provides the ability to configure the select pin of digital microphone to VDD or Ground.
- Quick and easy connection to evaluation system
- Small size is 25mm x 4.5mm
- Pre soldered MEMS microphone
- Configurable select pin configuration for digital microphones
Contents
Five XENSIV™ MEMS microphones IM67D130A mounted on flex board, Adapter board.
Technical Specifications
| Silicon Manufacturer | Infineon |
|---|---|
| Kit Application Type | Audio |
| Kit Contents | 5 x Flex Board IM67D130A, 1 x Adapter Board |
| SVHC | No SVHC (27-Jun-2018) |
| Silicon Core Number | IM67D130A |
|---|---|
| Application Sub Type | MEMS Microphone |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .025 |
