15DYS850-090500W-K
AC/DC Power Supply, ITE, 1 Output, 45 W, 9 VDC, 5 A
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | IDEAL POWER |
|---|---|
| Manufacturer Part No | 15DYS850-090500W-KCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3370080 |
| Product Range | 15DYS650-xyW-k Series |
| Your Part Number | |
| Technical Datasheet |
19 total stock globally
Need more?
19 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $32.900 ($36.190) |
| 5+ | $30.250 ($33.275) |
| 10+ | $29.180 ($32.098) |
| 50+ | $27.990 ($30.789) |
Price for:Each
Minimum: 1
Multiple: 1
$32.90 ($36.19 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | IDEAL POWER |
|---|---|
| Manufacturer Part No | 15DYS850-090500W-KCopy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 3370080 |
| Product Range | 15DYS650-xyW-k Series |
| Technical Datasheet | |
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 45W |
| Output Voltage - Output 1 | 9VDC |
| Output Current - Output 1 | 5A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 90V AC to 264V AC |
| Product Range | 15DYS650-xyW-k Series |
| Plug Type | AU, EU, UK, US |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

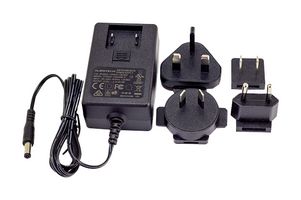

The 15DYS650-090400W-K from Ideal Power is an AC to DC interchangeable power supply. Certified to several international approvals to EN 60950-1 & EN 60065 standards. It is supplied with 4 interchangeable AC plugs (UK, Euro, US, Aust).
- Input voltage range from 90VAC to 264VAC (full range), 47/63Hz frequency range
- Input current (RMS) is 1.3A at 90VAC and 0.6A at 264VAC
- 9VDC output voltage, ±5% voltage regulation at constant voltage mode
- 5A output current, barrel plug centre positive 2.1mm x 5.5mm output connector
- 50W maximum output power, size of 84.5mm x 52mm x 36mm
- 100% ATE tested
- NRCAN, DOE, ERP, GEMS, efficiency level VI energy saving
- Ambient operating temperature range from 0°C to 45°C
- High reliability, built-in OVP, OCP & SCP
- 100% smart burn-in test for 4hours
Applications
Consumer Electronics, Industrial
Technical Specifications
| Power Supply Applications | ITE |
|---|---|
| Output Power Max | 45W |
| Output Current - Output 1 | 5A |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Power Supply Output Type | Fixed |
| Product Range | 15DYS650-xyW-k Series |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Outputs | 1 Output |
|---|---|
| Output Voltage - Output 1 | 9VDC |
| Output Voltage - Output 2 | - |
| Output Connector | Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm |
| Output Current - Output 3 | - |
| Input Voltage VAC | 90V AC to 264V AC |
| Plug Type | AU, EU, UK, US |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .115 |
