17PLUS-Q02-00
POWER DISTRIBUTION SYSTEM, CKT BREAKER

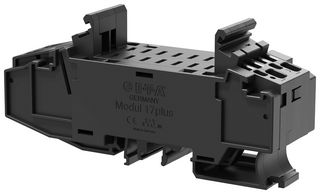

Image is for illustrative purposes only. Please refer to product description.
ManufacturerETA
Manufacturer Part No17PLUS-Q02-00
Order Code4143187
Your Part Number
Technical Datasheet
1 total stock globally
Need more?
1 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $84.020 ($92.422) |
| 2+ | $73.520 ($80.872) |
| 3+ | $60.920 ($67.012) |
| 5+ | $54.620 ($60.082) |
| 10+ | $50.420 ($55.462) |
| 20+ | $47.050 ($51.755) |
Price for:Each
Minimum: 1
Multiple: 1
$84.02 ($92.42 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview
17PLUS-Q02-00 is a module 17plus, centre piece. This module accommodates two breakers with an individual housing width of 12.5mm and fits onto all industry-standard mounting rails. The two-way module is mounted side-by-side to provide as many ways as required with a terminal block fitted at each end for the connection of signalling circuits. Electrical connections are by means of screwless spring-loaded terminals. Fitting a busbar on the terminal side of the modules provides power distribution onto the individual ways with a common line entry. When plugging in multipole circuit breakers, the busbar cannot be used. In this case, each pole has to be individually connected.
- Voltage rating (without circuit breaker) IS AC 250V; 3 AC 433V; DC 65V
- Current rating (without circuit breaker) is 50A (line feed (1.1/1.2)
- UL 60950 standard approval
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85389099
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01
