B88069X2250S102
Gas Discharge Tube (GDT), 2-Electrode, A8, 230 V, Axial Leaded, 20 kA, 600 V
1,971 total stock globally
Need more?
1,971 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $4.280 ($4.708) |
| 5+ | $3.940 ($4.334) |
| 10+ | $3.590 ($3.949) |
| 20+ | $3.230 ($3.553) |
| 40+ | $2.870 ($3.157) |
| 100+ | $2.510 ($2.761) |
Price for:Each
Minimum: 1
Multiple: 1
$4.28 ($4.71 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
Product Overview

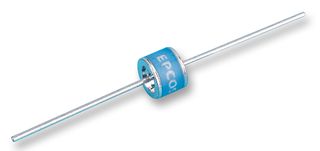

The B88069X2250S102 is a 2-electrode Gas Discharge Tube with axial leads. This heavy duty A81-A230X tube features 20kA nominal impulse discharge current and 230VDC spark-over voltage.
- Surge arrester
- <lt/>1.5pF Capacitance (at 1MHz)
- <gt/>10GΩ Insulation resistance (at 100Vdc)
- -40 to 90°C Operation and storage temperature range
Applications
Industrial
Technical Specifications
| Product Range | A8 |
|---|---|
| GDT Case Style | Axial Leaded |
| Impulse Sparkover Voltage | 600V |
| DC Breakover Voltage | 230V |
|---|---|
| Impulse Discharge Current | 20kA |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85354000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .001774 |
