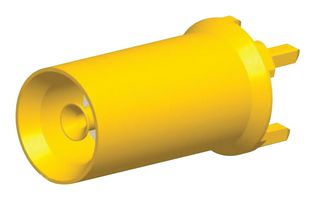

920-266J-51P
RF / Coaxial Connector, AFI Coaxial, Straight Jack, Through Hole Vertical, 50 ohm
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $16.900 ($18.590) |
| 10+ | $16.590 ($18.249) |
| 25+ | $15.280 ($16.808) |
| 50+ | $14.650 ($16.115) |
| 100+ | $13.030 ($14.333) |
| 250+ | $11.680 ($12.848) |
| 500+ | $11.250 ($12.375) |
| 1000+ | $10.890 ($11.979) |
Product Information
Product Overview
Amphenol RF introduces the AFI connector interface as a solution for blind mate board-to-board RF applications, especially for the military and broadband marketplaces. The AFI interface utilizes a proprietary configuration that allows for industry leading “float” to compensate for the axial and radial misalignment due to packaging tolerances. This industry-leading float results in a maximum misalignment allowed by the system of .030” [0,8 mm] radial and .040” [1,0 mm] axial. The interface is available in both 75 Ohm and 50 Ohm configurations.
- Power handling: 95W
- 100 mating cycles
- Operating temperature: -65°C to +165°C
Applications
RF Communications, Signal Processing, Communications & Networking, Industrial, Telecommunications
Technical Specifications
AFI Coaxial
Through Hole Vertical
-
Gold Plated Contacts
PCB Mount
Lead (21-Jan-2025)
Straight Jack
50ohm
Beryllium Copper
6GHz
AFI
