58246-1

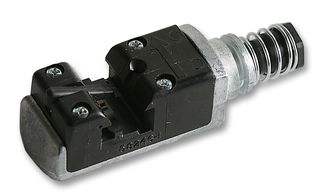

TOOL, RECEPTACLE HEAD, 0.1"
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No58246-1
Order Code589469
Your Part Number
Technical Datasheet
24 total stock globally
10 more incoming. You can reserve stock now
24 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,171.740 ($1,288.914) |
| 5+ | $1,025.270 ($1,127.797) |
| 10+ | $849.510 ($934.461) |
| 25+ | $783.480 ($861.828) |
Price for:Each
Minimum: 1
Multiple: 1
$1,171.74 ($1,288.91 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No58246-1
Order Code589469
Technical Datasheet
Crimp Die ApplicationsMTA-100 IDC Receptacle Connectors
For Use With58074-1 & 58075-1 Pistol Grip Handle Assemblies
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 58246-1 from TE Connectivity is a terminating head for MTA-100 receptacles. This terminating head is designed to terminate discrete wire in MTA-100 IDC closed end receptacles with lock (ramp) and polarizing tabs. The head must be installed in 58074-1 Pistol Grip manual handle assembly or 58075-1 Pistol Grip pneumatic handle assembly.
- Wire inserter
- Adjuster (insertion rod)
- Feed slide
- Locating pawl (or anti-backup pawl)
Applications
Maintenance & Repair
Technical Specifications
Crimp Die Applications
MTA-100 IDC Receptacle Connectors
Product Range
-
For Use With
58074-1 & 58075-1 Pistol Grip Handle Assemblies
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:82079099
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.14
