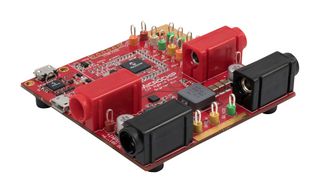

DM164147
Development Kit, CIP Hybrid Power Starter Kit, PIC16F1779 MCU, 3.3V, 8A
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | DM164147Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2988495 |
| Your Part Number |
2 total stock globally
Need more?
2 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $167.240 ($183.964) |
Price for:Each
Minimum: 1
Multiple: 1
$167.24 ($183.96 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | MICROCHIP |
|---|---|
| Manufacturer Part No | DM164147Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 2988495 |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | PIC16F1779 |
| Kit Application Type | Power Management |
| Application Sub Type | SMPS |
| Core Architecture | PIC |
| Core Sub-Architecture | PIC16 |
| Silicon Family Name | PIC16F17xx |
| Kit Contents | CIP Hybrid Power Starter Kit PIC16F1779 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
CIP hybrid power starter kit is a hardware platform designed to demonstrate the flexibility of Microchip’s CIP hybrid power microcontroller as used in a Switched Mode Power Supply (SMPS) application. The board incorporates the PIC16F1779 as the freely programmable PMIC device of a synchronous buck converter. It supports three different control modes such as Voltage Mode Control (VMC), Peak Current Mode Control (PCMC) and Average Current Mode Control (ACMC) (the components are not populated by default).
- PIC16F1779 CIP hybrid power microcontrollers
- One power on LED and two status LEDs
- One mechanical user switch
- Board identification in MPLAB X IDE, one green power and status LED on-board debugger
- I2C bridge support
- 9V DC input and 3.3V output voltage
- 8A maximum output current
- Efficiency of 94.4% at 65% load
Technical Specifications
| Silicon Manufacturer | Microchip |
|---|---|
| Kit Application Type | Power Management |
| Core Architecture | PIC |
| Silicon Family Name | PIC16F17xx |
| Product Range | - |
| Silicon Core Number | PIC16F1779 |
|---|---|
| Application Sub Type | SMPS |
| Core Sub-Architecture | PIC16 |
| Kit Contents | CIP Hybrid Power Starter Kit PIC16F1779 |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84732910 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
