6487/E

Picoammeter, Average, Auto, Manual Range, 20 mA, 5.5 Digit

6487/E - Picoammeter, Average, Auto, Manual Range, 20 mA, 5.5 Digit

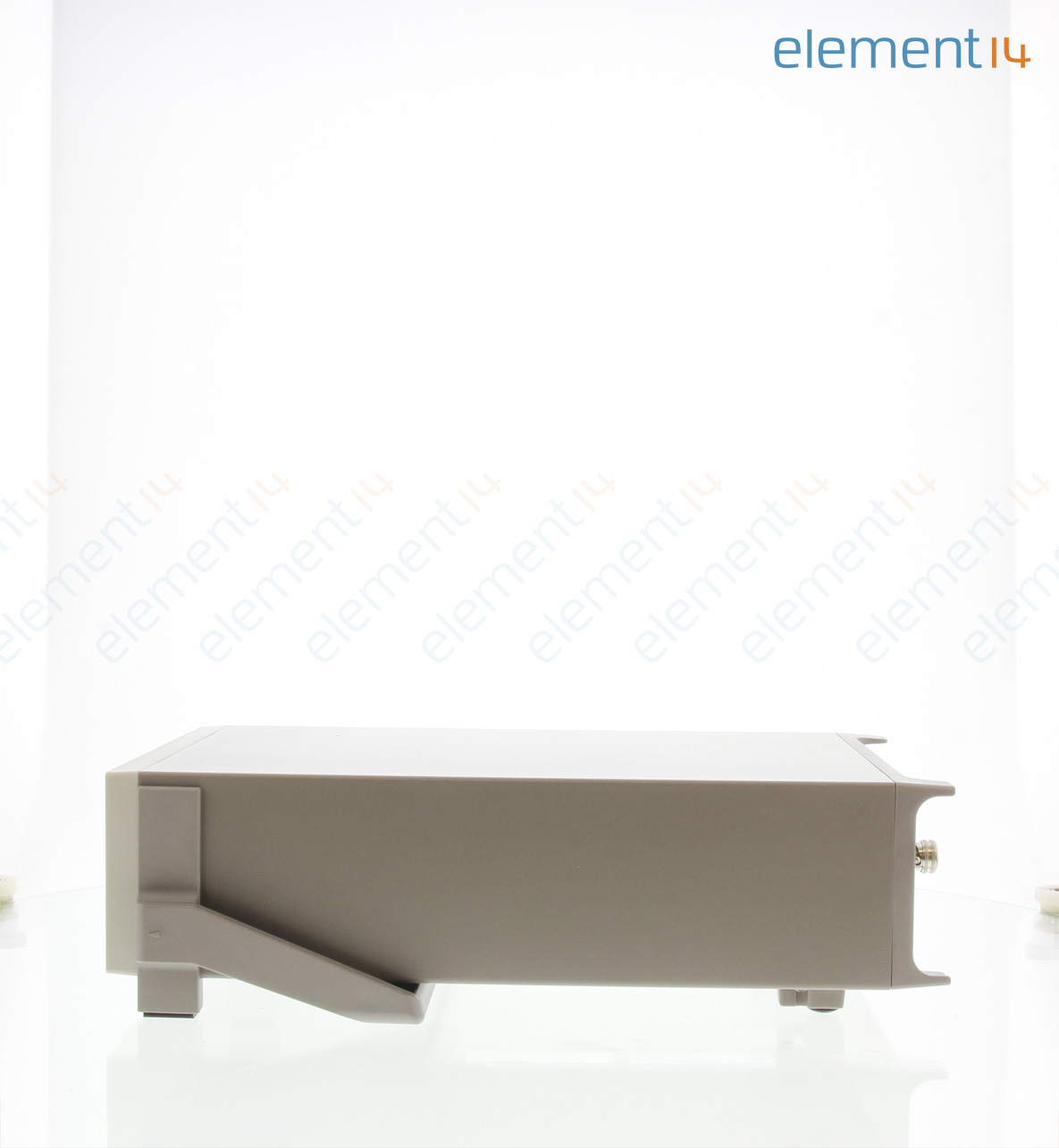

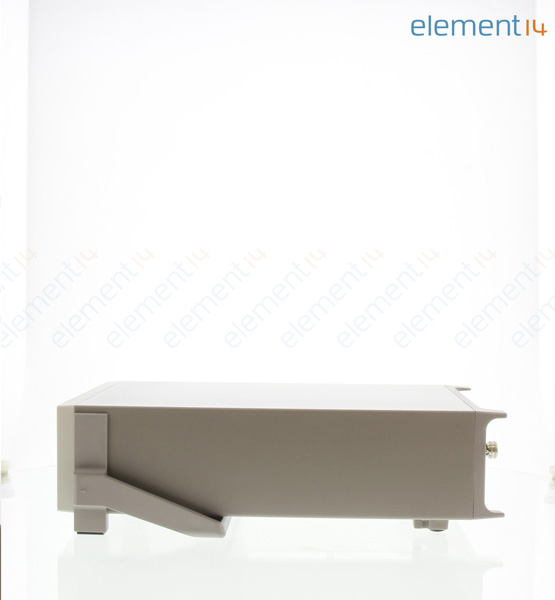

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
KEITHLEY KEITHLEY
Manufacturer Part No:
6487/E
Order Code:
2074763
Technical Datasheet:
6487/E   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
5.5

:
GPIB, RS232, USB

:
-

:
-

:
-

:
-

:
20mA

:
-

:
1 Year

:
DC Current

:
EU, SWISS, UK

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (3)

Product Overview

The 5-1/2 digit Model 6487 Picoammeter/Voltage Source improves on the measurement capability of the award-winning Model 6485, and adds a high resolution 500V source. It provides higher accuracy and faster rise times than the 6485, as well as a damping function for use with capacitive devices. With eight current measurement ranges and high speed autoranging, this cost-effective instrument can measure currents from 20fA to 20mA, take measurements at speeds up to 1000 readings per second, and source voltage from 200?V to 505V.
  • Up to 1000 readings/second
  • Built-in Model 486 and 487 emulation mode
  • IEEE-488 and RS-232 interfaces
  • Digital I/O, Analogue output
  • Beam monitoring and radiation monitoring
  • Leakage current testing in insulators, switches, relays, and other components
  • I-V characterisation on semiconductor and optoelectronic devices
  • Fibre alignment
  • Circuit test and analysis in DCLF circuits
  • Sensor characterisation

Applications

Industrial, Maintenance & Repair, Test & Measurement, Medical

Contents

Picoammeter/ voltage source meter, Ground connection cable, Protective shield/cap, low noise cable and High voltage banana cable set.

Footnotes

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
