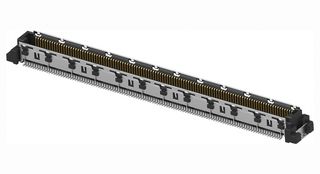

Mezzanine Connector, Plug, 0.5 mm, 2 Rows, 220 Contacts, Surface Mount, Copper Alloy


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
2357787-3   Datasheet
Supply Frame Models Link
See all Technical Docs

Product Range Selector (Free Height Series)

See all from this product range

Product Overview

2357787-3 is a connector 5mm plug. The computer-on-module (COM) connector is a widely used modular CPU boards that feature high integration, quick design, easy installation and maintenance, and smooth upgrades. It is a ready-to-use, application-agnostic embedded platform that can accelerate the end product’s time-to-market in a cost-effective way. New contact design can economically enable better performance: higher speed, and improved mechanical and signal integrity performance. Primary industries applications are industrial machinery and equipment, test and measurement equipment, aerospace and defence, computer equipment and peripherals, medical devices and equipment, telecommunication equipment, security products.
  • 220 position, contact mating area plating material thickness is 8µin
  • Faster data speed, better SI performance
  • Easier installation in operation, economic upgrade solution
  • Data rate is 16GT/s, 0.5mm double-row contact pitch
  • Impedance is 85ohm, surface mount (SMT) PCB termination
  • Temperature range from -45°C to 125°C
  • Black primary product colour
  • Contact current rating is 0.5A maximum
  • UL 94V-0 UL flammability rating
