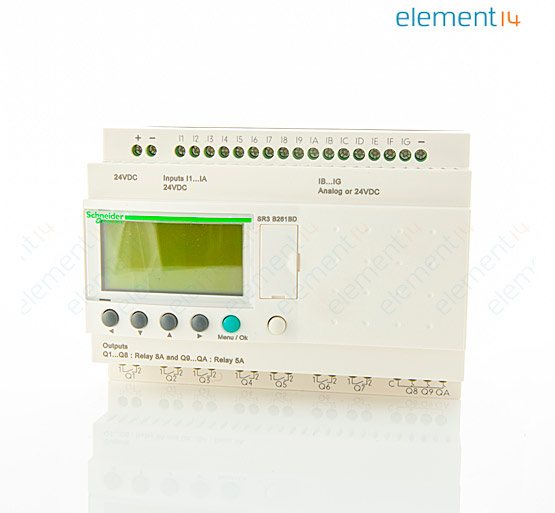

SR3B261BD

Smart Relay, Modular, Zelio Logic, 16 Discrete Inputs, 10 Relay Outputs, 24 Vdc

SCHNEIDER ELECTRIC SR3B261BD
Video
360°
Add to compare
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
SR3B261BD
Order Code:
5018791
Product Range
Zelio Logic
Technical Datasheet:
SR3B261BD   Datasheet
See all Technical Docs

Product Range Selector (Zelio Logic)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
6

:
-

:
16

:
10

:
Zelio Logic

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (6)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The SR3B261BD is a Zelio Logic Modular Smart Relay with local display. It checks program memory on each power up. It features common mode analogue inputs, reverse polarity protection, resistive discrete input and 3-wire proximity sensors PNP (discrete input) input compatibility. It is approved by EN/IEC 60068-2-27 Ea, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-5 and EN/IEC 61000-4-6 level 3 standards.
  • Screw terminal connection
  • 6W without extension Power dissipation
  • 1kHz for Discrete input counting frequency
  • 8 bits Analogue input resolution
  • 500000 cycles Electrical durability
  • 10000000 cycles Mechanical durability
  • 0.5N-m Tightening torque
  • IP40 Front panel protection rating
  • IP20 Terminal block protection rating

Applications

Industrial, Lighting, HVAC, Automation & Process Control
