INFINEON  FP25R12KT4  IGBT Array & Module Transistor, NPN, 25 A, 1.85 V, 160 W, 1.2 kV, Module

INFINEON FP25R12KT4
INFINEON FP25R12KT4
Technical Data Sheet (813.79KB) EN See all Technical Docs

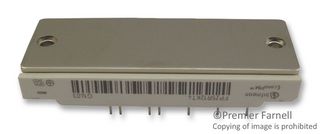

Image is for illustrative purposes only. Please refer to product description.

INFINEON FP25R12KT4
INFINEON FP25R12KT4



Product Information

Transistor Polarity:
NPN
DC Collector Current:
25A
Collector Emitter Saturation Voltage Vce(on):
1.85V
Power Dissipation Pd:
160W
Collector Emitter Voltage V(br)ceo:
1.2kV
Transistor Case Style:
Module
No. of Pins:
23Pins
Operating Temperature Max:
150°C
Product Range:
-
SVHC:
No SVHC (17-Dec-2015)

Find similar products  grouped by common attribute

Legislation and Environmental

Country of Origin:
Hungary

Country in which last significant manufacturing process was carried out

RoHS Compliant:
Yes
Tariff No:
85412900
Weight (kg):
.25
